Rubber conveyor belts are the backbone of efficient material handling in industries like mining, manufacturing, logistics, and construction. Understanding the different parts of a rubber conveyor belt system helps operators optimize performance, reduce downtime, and extend belt lifespan. From the belt itself to pulleys, rollers, drive motors, and specialty add-ons, each component plays a vital role in moving bulk materials or packages smoothly and safely.
A rubber conveyor belt system is an engineered solution designed to move materials efficiently from one point to another. It consists of several interconnected components that work together to carry bulk items, packages, or industrial products.
They are commonly used in mining, manufacturing, construction, and warehouse operations. The system’s structure ensures smooth transport, reduces manual labor, and improves workflow efficiency.
At its core, a conveyor system includes these main components of a rubber conveyor belt:
Conveyor Belt: The surface that carries materials. It can be rubber, thermoplastic, or steel-reinforced.
Pulleys: Cylindrical wheels that drive, redirect, or maintain tension in the belt.
Rollers: Support the belt along the conveyor path and reduce friction.
Motor and Gearbox: Provide the power needed to move the belt and its load.
Frame: The skeleton holding all parts in correct alignment.
These parts together form a rubber conveyor belt structure designed to handle different weights, inclines, and environmental conditions.
They perform multiple functions beyond simple transport:
Efficiently move bulk goods over long distances.
Maintain consistent tension and alignment along the belt.
Protect materials from spillage using chutes or skirt boards.
Allow integration of automation, like barcode scanners or weighing systems.
A simple schematic can help visualize the complete system:
| Component | Function | Position |
|---|---|---|
| Conveyor Belt | Carries materials | Top surface |
| Drive Pulley | Moves the belt | Head end |
| Tail Pulley | Redirects and maintains tension | Opposite end |
| Idler Rollers | Support loaded and unloaded sections | Under the belt |
| Motor & Gearbox | Power source | Connected to drive pulley |
| Frame | Structural support | Along entire system |
A diagram showing the belt running over pulleys and rollers can clarify how all parts interact. Adding arrows for motion and labels for key components makes it easy to understand at a glance.
A rubber conveyor belt system depends on multiple critical components working together seamlessly. Each part contributes to moving bulk materials or packages efficiently, reducing downtime, and improving safety. Let’s explore these key parts in detail.
The conveyor belt itself is the central component, carrying all materials along the system. It is designed to withstand heavy loads, impacts, and environmental stress:

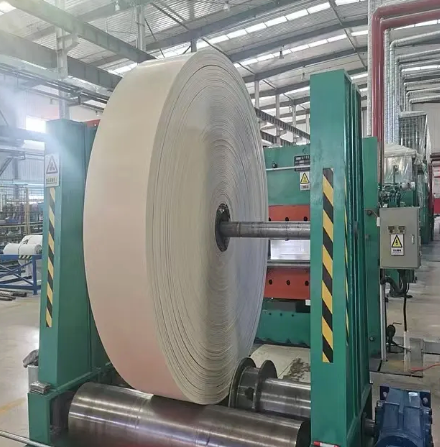

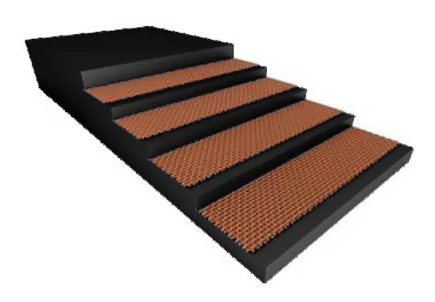

Top Cover: This layer protects the belt against abrasion, impact, and chemical exposure. It comes in different rubber compounds depending on the material transported, such as heat-resistant for hot materials or oil-resistant for greasy loads.
Bottom Cover: It protects the belt from wear and friction caused by rollers or pulleys. The bottom cover is usually slightly thinner than the top but must have enough durability to prevent early failure.

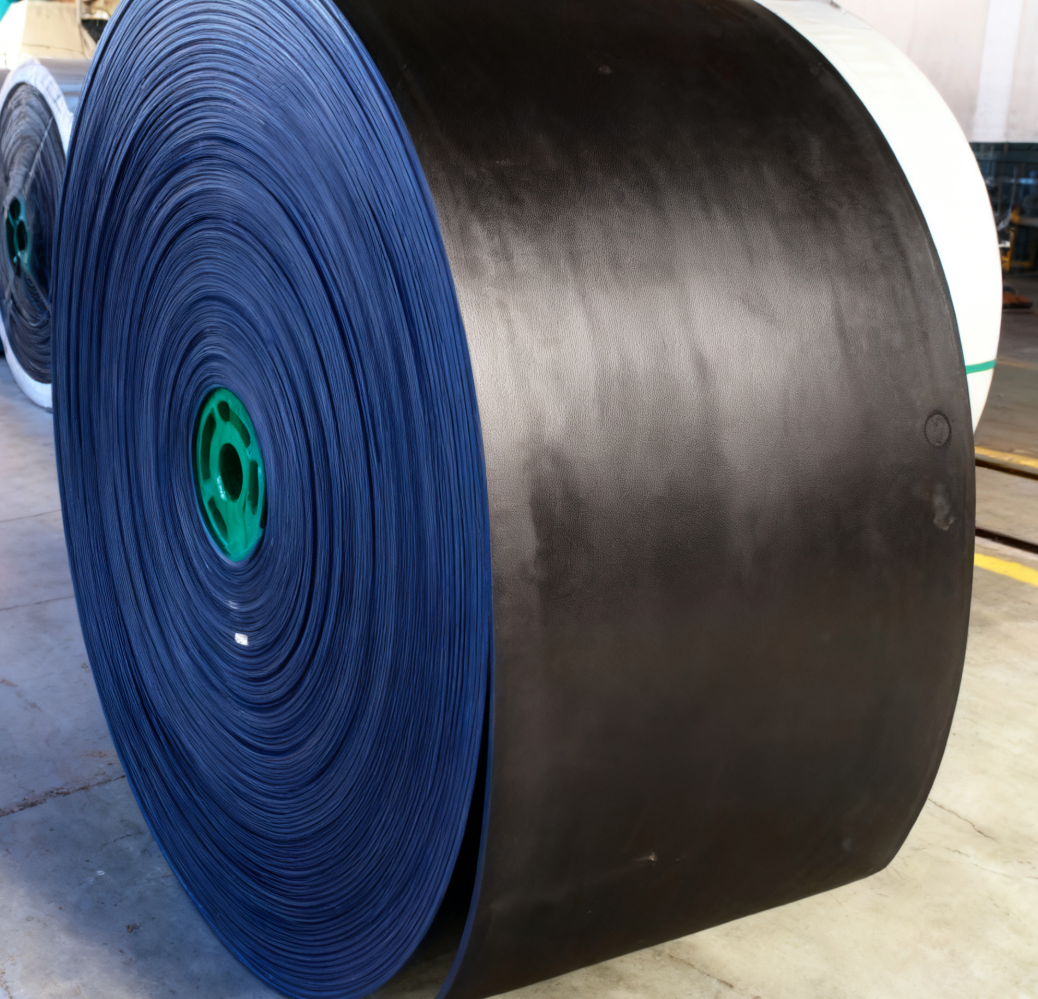

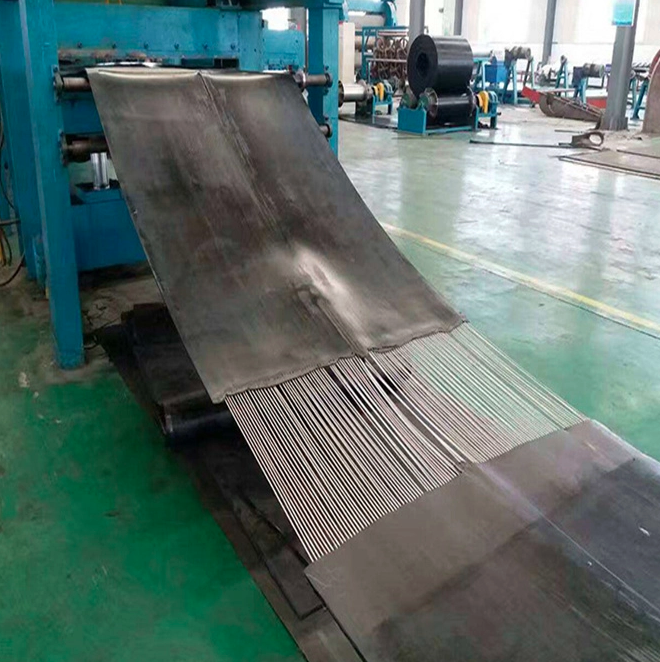

Carcass: This is the structural core of the belt. Textile carcasses (EP) are flexible, have low elongation, and adapt well to curves or inclined conveyors. Steel cord carcasses are much stronger, ideal for long-distance transport over 500 meters, and resist heavy impacts or sharp materials. Carcass plies vary from 2–6 for textile belts, while steel cord belts may use specialized constructions such as SIDERFLEX ID, IW, or HE types.
Adhesion Layers: These critical layers bond the top and bottom covers to the carcass. They prevent delamination, even under high tension, heavy loads, or impact. Without proper adhesion, belts can fail prematurely.
Pro Tip: Selecting the right belt type and top cover compound improves lifespan and reduces maintenance costs.
Pulleys are cylindrical wheels that drive, redirect, and maintain tension on the belt. They are essential for smooth operation and can be customized for specific applications:
Types of Pulleys:
Drive Pulley: Connects directly to the motor, providing the primary force to move the belt.
Tail Pulley: Redirects the belt back toward the drive pulley and maintains tension on the slack side.
Snub Pulley: Increases the wrap angle on the drive pulley, improving grip for heavy or slippery loads.
Bend Pulley: Changes the belt direction along the conveyor path.
Take-Up Pulley: Adjusts overall belt tension and compensates for stretching over time; sometimes doubles as a tail pulley.
Pulley Materials: Steel, cast iron, or other metals; rubber or ceramic lagging may be added to increase friction and protect the belt.
Function: Pulleys control motion, tension, and direction while reducing belt slippage.
| Pulley Type | Function | Notes |
|---|---|---|
| Drive Pulley | Powers the belt | Often coupled to motor |
| Tail Pulley | Maintains tension and redirects belt | At opposite end |
| Snub Pulley | Increases traction | Improves drive efficiency for heavy loads |
| Bend Pulley | Changes belt direction | Flexible placement |
| Take-Up Pulley | Adjusts belt tension | Compensates for belt elongation |
Rollers support the belt and material load throughout the conveyor:
Idler Rollers: Standard rollers supporting the belt along its path. They keep the belt aligned and reduce friction.
Impact Rollers: Rubber-cushioned rollers designed to absorb shocks from free-falling materials. They reduce belt damage and vibration.
Weigh Rollers: Integrated with weighing systems to measure the load in real time, useful in automated sorting or inventory management.
Materials: Steel or aluminum rollers offer durability, while plastic or coated rollers reduce noise. The choice affects maintenance, lifespan, and conveyor smoothness.
Pro Tip: Proper roller spacing prevents belt sagging and material spillage, especially for heavy loads.
The drive system powers the conveyor and ensures stable motion:
Motor Types: Variable-speed motors provide precise control for sensitive operations. Constant-speed motors are simpler and reliable for standard material flow.
Gearbox Function: Adjusts torque and speed to match belt and load requirements.
Coupling: Transfers rotational motion efficiently from the gearbox to the drive pulley.
Importance: Directly affects conveyor speed, energy efficiency, and system reliability. Poorly matched motors or gearboxes can cause slippage, uneven movement, or increased wear.
The frame forms the backbone of the entire system, holding all parts in precise alignment:
Materials: Heavy-duty steel frames handle large loads, while aluminum frames suit lighter packages or portable systems.
Fixed vs Mobile Frames: Fixed frames provide long-term stability and minimal maintenance. Mobile frames allow reconfiguration for temporary setups or warehouse layout changes.
Design Considerations: Height, length, load capacity, and multiple conveyor levels must match operational needs. Frames also influence safety, ergonomics, and workflow efficiency.
Efficient loading and discharge reduce material spillage and improve throughput:
Chutes: Guide materials gently onto the belt, avoiding impact damage.
Skirt Boards: Prevent side spillage, especially for loose or granular materials.
Hoppers: Store and dispense materials in a controlled manner.
Rubber Linings: Protect chutes, hoppers, and skirt boards from abrasion or chemical wear, extending service life.
Pro Tip: Optimized loading points reduce stress on the belt and minimize maintenance downtime.
Rubber conveyor belt systems often rely on specialty parts and add-ons to handle complex operations efficiently. These components improve workflow, increase automation, and enhance safety across warehouses and industrial facilities.
Diverters are designed to guide packages or materials from one conveyor line to another. They act like traffic controllers, ensuring items reach the correct destination without manual intervention. They can be mechanical or fully automated and are often integrated with sensors or a warehouse management system (WMS) to optimize sorting. Properly timed diverters reduce jams and prevent package damage, keeping operations smooth even during high-volume processing.
Merge points allow multiple conveyor lines to combine into a single path. They are essential for creating flexible layouts and ensuring that material flow remains consistent. By using sensors and smooth rollers, merge points align packages properly, prevent collisions, and maintain a steady throughput. They are often positioned immediately downstream of diverters, providing a seamless connection between different conveyor branches.
Accumulation tables provide temporary storage for packages before they are sent to another conveyor or merge point. They act as buffers to prevent overloading and allow the system to maintain a continuous flow. These tables can be gravity-fed or powered, depending on the volume and type of materials. Using accumulation tables reduces stress on the belt and the transported goods, especially when handling surges in high-volume environments.
Automation add-ons like barcode scanners and weighing scales integrate conveyor systems with WMS software. Barcode scanners capture package information to sort and track items automatically, while weighing scales measure weight in real time, assisting in shipping, billing, or quality control processes. This data can directly control diverters, accumulation logic, or sorting operations, improving efficiency and accuracy across the conveyor network.
Wear strips and guards protect both the rubber conveyor belt and the system’s moving parts. Wear strips shield belt edges from friction, abrasion, and spillage, prolonging the belt’s service life. Guards cover pulleys, rollers, and other moving components to prevent accidents, ensuring operator safety. Durable materials such as rubber or reinforced polymers are typically used, which reduce maintenance costs and help prevent unexpected downtime.
Regular maintenance is essential for any rubber conveyor belt system to operate efficiently and safely. Regular inspection helps detect wear, cuts, and tears on the belt surface before they cause serious damage. Checking the top cover, edges, and internal plies ensures that small issues are addressed early, reducing unexpected downtime.
Lubricating rollers and pulleys keeps the conveyor moving smoothly and reduces friction that can accelerate wear. Proper lubrication schedules depend on load, environmental conditions, and operational frequency. By maintaining bearings and moving parts, we prevent excessive stress on the belt and improve overall system longevity.
Belt alignment and tension are critical for performance and safety. Misalignment can cause uneven wear, spillage, or tracking issues, while improper tension may lead to slippage or excessive elongation. Operators should regularly monitor the conveyor path, adjust tension as needed, and ensure the belt runs straight on all pulleys and rollers.
Common conveyor problems include belt slippage, elongation, and impact damage. Slippage often results from worn covers or insufficient tension, while elongation can occur over long distances or heavy loads. Impact damage from falling materials or sharp edges can tear the belt. Timely identification and repair of these issues help maintain smooth operations and prevent costly downtime.
A rubber conveyor belt system consists of several key components including the conveyor belt itself, pulleys, rollers, drive motor and gearbox, conveyor frame, loading and discharge components, and specialty add-ons like diverters, accumulation tables, and guards. Each part works together to transport materials efficiently.
EP (textile carcass) belts are flexible, lightweight, and offer excellent adhesion between plies, suitable for medium loads and shorter distances. Steel cord belts use brassed steel cables, providing high strength, minimal elongation, and superior impact resistance, ideal for heavy loads and long-distance conveying.
Belt lifespan depends on material, load, operating environment, and maintenance practices. With proper care, regular inspections, and timely tension adjustments, a high-quality rubber conveyor belt can last several years, even under heavy industrial use.
Yes, conveyor belts can be repaired or spliced using mechanical fasteners or hot/cold vulcanization techniques. Splicing ensures the belt maintains strength, flexibility, and adhesion, extending its service life without needing full replacement.
A well-maintained rubber conveyor belt system maximizes operational efficiency, safety, and reliability. Choosing the right belt, components, and maintenance practices ensures long-term performance in any industrial setting. For high-quality rubber conveyor belts and expert guidance on selecting the best solution for your facility, Qingdao Hwation Rubber Co.,Ltd. offers a wide range of durable, customized products and technical support to meet diverse industrial needs.
