In the mining industry, moving materials efficiently and safely is always a challenge. Mining belts, especially rubber conveyor belts, have become essential solutions for transporting ore, coal, and aggregates across open-pit and underground sites. These belts withstand harsh conditions, handle steep inclines, and reduce energy costs, making them a reliable choice for modern mining operations. From sorting and processing to long-distance and vertical transport, mining belts optimize productivity while improving safety and workflow.
A rubber conveyor belt is the heart of most modern mining operations. It’s a continuous moving strip made of reinforced rubber that transports materials like coal, ore, and gravel across different stages of production. Instead of relying on trucks to move bulk materials, conveyor belts provide a consistent, automated system that keeps operations running smoothly.
The system moves through a combination of pulleys, motors, and rollers. The belt cover—the top rubber layer—protects the internal structure from cuts, heat, and abrasion. Beneath it lies the carcass, typically made of fabric (like EP or nylon) or steel cords, which gives the belt its strength and flexibility.
Rollers guide and support the belt, while pulleys drive it using friction. The motor powers the movement, and the tensioning system keeps everything tight and aligned to prevent slippage.
| Component | Function |
|---|---|
| Belt Cover | Protects against wear, heat, and impact |
| Carcass | Provides strength and flexibility |
| Rollers | Support belt movement |
| Pulleys | Drive or redirect the belt |
| Motor | Supplies power |
| Tensioning System | Maintains alignment and belt tension |
Conveyor belts in mining face tougher environments than those in construction or manufacturing. They handle heavy loads, sharp materials, and extreme conditions underground or in open-pit mines.
While factory belts may prioritize smooth handling and precision, mining belts focus on durability and resistance to harsh wear and temperature.
That’s why mining belts often feature:
Abrasion-resistant rubber for sharp-edged rocks
Heat-resistant compounds for high-temperature applications
Fire-resistant layers for underground safety compliance
These properties reduce downtime and ensure longer belt life, especially in abrasive and high-friction conditions.
Mining operations rely heavily on rubber conveyor belts to move extracted materials like ore, coal, and aggregates. Once the rock is mined and crushed, conveyor belts take over—transporting the heavy loads efficiently from the extraction site to processing plants or stockpiles.
Instead of using multiple trucks, a single conveyor system can handle tons of material continuously, day and night.
Rubber conveyor belts are flexible in more ways than one. They can operate horizontally, on an incline, or even vertically in certain setups. This makes them ideal for both open-pit and underground mining.
The design adjusts easily to the terrain, allowing materials to move up steep gradients or across long distances without interruption.
| Conveyor Belt Orientation | Typical Use Case |
|---|---|
| Horizontal Belts | Moving bulk materials across flat surfaces |
| Inclined Belts | Elevating ore from underground to surface |
| Declined Belts | Delivering materials to crushers or storage points |
The materials mined—ore chunks, rock fragments, and minerals—often have sharp edges that can tear or wear out regular belts.
That’s why mining-grade conveyor belts use anti-abrasive rubber covers designed to resist impact, cuts, and surface wear. These covers are tested under strict conditions to ensure long life and consistent performance.
Belts are often categorized by their abrasion grade (such as Grade M24, D, or N). Choosing the right one depends on the hardness and sharpness of the materials being moved.
Efficient logistics are everything in mining. Rubber conveyor belts create a continuous, automated material flow, minimizing the stop-and-go inefficiency of truck haulage.
They eliminate the waiting time for trucks to load and unload, keeping production lines moving smoothly.
Let’s look at how they improve operations:
Reduced Downtime: Fewer moving parts mean fewer breakdowns.
Lower Loading Delays: Continuous flow prevents congestion at loading points.
Consistent Output: Material moves evenly, keeping crushers and mills supplied.
Safer Operations: Fewer heavy trucks reduce on-site traffic risks.
By automating transport through conveyor systems, mines can focus on output instead of constant vehicle coordination or maintenance.

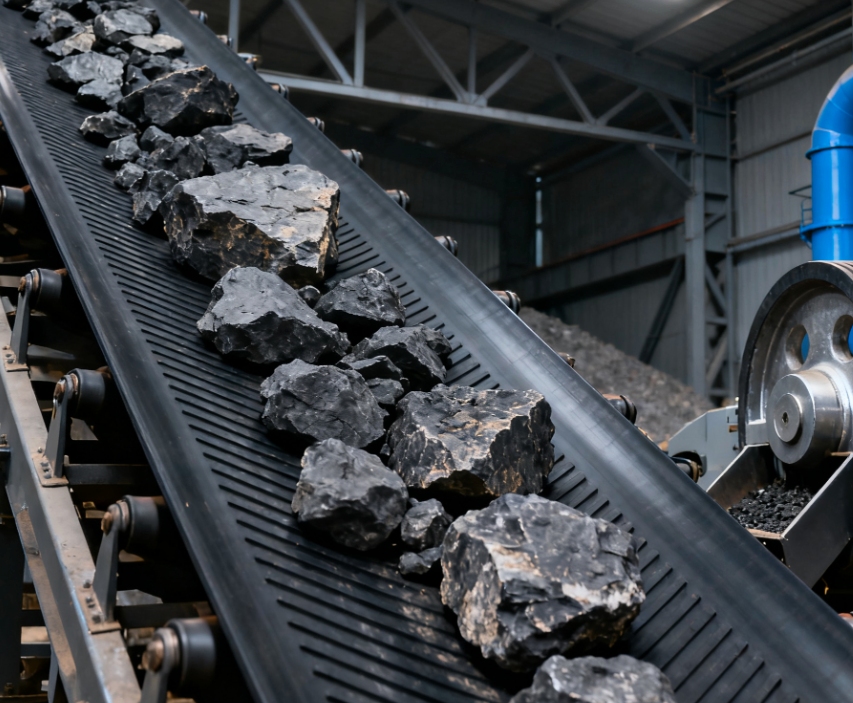

After extraction, the journey of raw ore doesn’t stop—it goes through several stages like crushing, screening, washing, and sizing. Here, rubber conveyor belts serve as the lifeline, linking every step together. They carry crushed rocks, coal, and minerals seamlessly from one processing station to another.
Instead of manual handling, the belts maintain a steady, automated flow of material, helping the entire system run smoothly and continuously.
Modern mining plants rely on automation. Conveyor belts today can integrate sensors and automated systems to monitor, measure, and even sort materials as they move. Sensors detect impurities, particle size, or unwanted materials, triggering sorting arms or air jets to remove them. This reduces manual labor and ensures that only the right materials continue down the line. Automation also improves safety—less human intervention near heavy machinery—and keeps productivity steady even during long shifts.
| Processing Stage | Conveyor Belt Function |
|---|---|
| Crushing | Moves large rocks to crushers safely |
| Screening | Transfers materials for size separation |
| Washing | Carries cleaned aggregates forward |
| Sizing | Ensures correctly sorted materials reach the next step |
To protect the belt from wear during these demanding cycles, operators often install pulley lagging sheets. These rubber-coated layers increase friction between the pulley and the belt surface, preventing slippage and extending service life. They also act as a shock absorber, especially in high-tension areas of the system.
Friction never sleeps. As the conveyor runs non-stop, both the top and bottom covers experience wear. Over time, this leads to belt degradation—reduced grip, cracking, and even tearing under load. When that happens, sorting slows down, and downtime increases.
Common signs of wear include:
Uneven belt surface
Slippage on pulleys
Heat buildup under tension
Frayed or thinning edges
Preventive maintenance is the best way to handle this. Regular inspections, protective coatings, and belt cleaners help minimize friction damage.
Using lagging sheets and high-quality rubber compounds can also reduce wear on contact points, ensuring smoother sorting and longer operational hours.
Once minerals are processed, they need to be stored or shipped. Rubber conveyor belts handle this efficiently by moving materials to stockpiles or directly loading them onto trucks, trains, or ships. This system replaces heavy manual labor and speeds up the transfer of tons of crushed ore, coal, or aggregate every hour.
Using rubber conveyor belts minimizes manual handling and improves overall workflow efficiency—keeping the operation smooth and continuous.
In large-scale mines, conveyor belts often connect to stacker systems. These machines build massive stockpiles by layering material evenly, creating stable storage mounds. When materials need to be retrieved, reclaimer systems work in the opposite direction, reclaiming the ore or coal and feeding it back into the production or transport line.
| System | Function | Benefit |
|---|---|---|
| Stacker | Deposits processed material into organized piles | Prevents uneven stacking |
| Reclaimer | Retrieves material from stockpiles for reuse or shipping | Reduces handling time |
| Conveyor Belt | Transports ore to and from these systems | Enables continuous operation |
This integrated approach ensures no bottlenecks in storage or loading, especially in large mining hubs where downtime can cost thousands per hour.
Even durable conveyor belts face issues during heavy use. Common problems include belt misalignment, slippage, and surface wear.
When these occur, the entire loading line may stop, causing material buildup or loss of output.
To avoid such interruptions, mines now use real-time monitoring systems that track belt tension, temperature, and alignment. Sensors can alert maintenance crews before a minor issue turns into a breakdown.
Here are a few key prevention measures:
Regular Inspections: Spot cracks, fraying, or uneven wear early.
Scheduled Maintenance: Lubricate pulleys, replace worn rollers, check tensioning systems.
Automatic Monitoring: Use sensors to detect slippage or overloads.
Protective Coatings: Apply rubber lagging or anti-slip covers to extend belt life.
Consistent monitoring and a solid maintenance schedule help keep stockpiling belts running longer and more reliably—reducing costly stoppages.
Transporting ore over long distances in mining areas is often a major challenge. Overland conveyor systems provide an efficient solution by moving huge amounts of material continuously across varied terrain. These rubber overland conveyor belts are specifically designed for long-distance mining operations. They handle both horizontal and inclined sections while maintaining high reliability. Compared to trucks, they dramatically reduce fuel consumption and lower carbon emissions, making them an environmentally friendly alternative.
| Transport Method | Fuel Consumption | Emissions | Efficiency |
|---|---|---|---|
| Truck Fleet | High | High | Intermittent |
| Overland Conveyor | Low | Low | Continuous |
Overland conveyor belts offer scalability for growing operations. Companies can extend or modularize systems as mines expand. Automation allows belts to run 24/7, reducing labor requirements. They also lessen dependence on road infrastructure, avoiding maintenance costs and downtime caused by weather. Overall, these systems create a safer, cleaner, and more reliable long-distance ore transport solution.
In mining operations, moving ore or waste rock between different elevations can be tricky. Inclined or vertical rubber conveyor belts handle this by transporting materials efficiently from lower to upper levels.
Special cleated belt designs help secure material on steep inclines. These cleats, or ridges, increase traction, support heavy loads, and prevent slippage. The belts are engineered for anti-slip performance, ensuring ore stays in place even on angles exceeding 30–45 degrees.
| Feature | Benefit |
|---|---|
| Cleated Belt Surface | Prevents rollback and slippage |
| Strong Belt Carcass | Supports heavy loads |
| High-Traction Rubber | Maintains continuous material flow |
For steep or vertical transport, belts like Chevron Conveyor Belts or Sidewall Belts work best. They channel material along the slope, reduce rollback, and improve throughput efficiency. These belt types are essential when mining operations involve multi-level excavation or compact vertical shafts.
Selecting the proper rubber conveyor belt ensures efficiency, safety, and durability in mining operations. We need to consider several factors before choosing the right type.
Different ores, coal, and aggregates require belts with specific abrasion resistance. Hard, sharp rocks need reinforced covers, while softer materials can use standard rubber surfaces.
Long-distance or overland conveyors need steel cord belts for strength and minimal stretch. Shorter, horizontal runs can rely on EP or NN belts. Terrain affects belt tension and roller layout, so the system design matters.
Mining environments expose belts to extreme heat, cold, or moisture. High-temperature-resistant rubber handles hot aggregates. Cold-resistant belts prevent cracking in frigid operations. Moist or corrosive conditions require oil- and water-resistant compounds.
EP (polyester/nylon): Good for light to medium loads, flexible.
NN (all-nylon): High elongation, ideal for medium loads and curved conveyors.
Steel Cord: Heavy-duty, low elongation, perfect for long-haul or steep inclines.
Ensure belts meet ISO or DIN standards for safety and quality. Certification guarantees consistent thickness, tensile strength, and fire resistance.
| Factor | Recommendation |
|---|---|
| Material | Reinforced rubber for sharp ores |
| Distance | Steel cord for long hauls |
| Environment | Heat/cold/oil-resistant compounds |
| Construction | EP, NN, or Steel Cord depending on load |
| Standards | ISO, DIN certified belts |
Rubber conveyor belts transport ore, coal, and aggregates efficiently across mining sites. They handle horizontal, inclined, and vertical transport while reducing manual labor and improving workflow.
Mining belts are designed for abrasion, heat, and fire resistance, unlike construction or manufacturing belts, which face less extreme conditions.
Belts offer continuous, automated material flow, reduce downtime, lower energy consumption, and improve safety compared to trucks or loaders.
Yes, chevron belts and sidewall belts provide traction and prevent material rollback on steep angles.
Regular inspections, tension adjustments, roller checks, and use of protective coatings or pulley lagging sheets help prevent wear and downtime.
Rubber mining belts have transformed the industry by providing continuous, reliable, and energy-efficient material handling solutions. Their versatility in handling different materials, adaptability to various terrains, and resistance to wear and extreme conditions make them indispensable for any mining operation. For companies aiming to enhance productivity and maintain operational efficiency, Qingdao Hwation Rubber Co., Ltd. offers high-quality mining belts designed specifically for the mining sector, backed by expert support and global service.
