Filter Belt

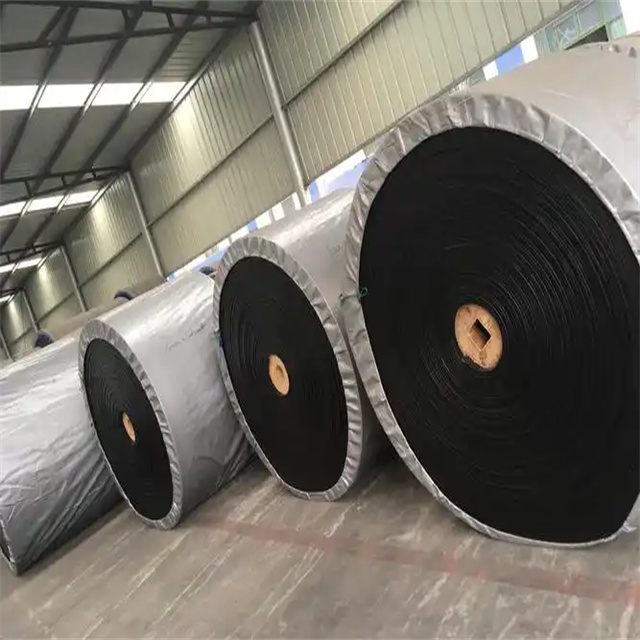

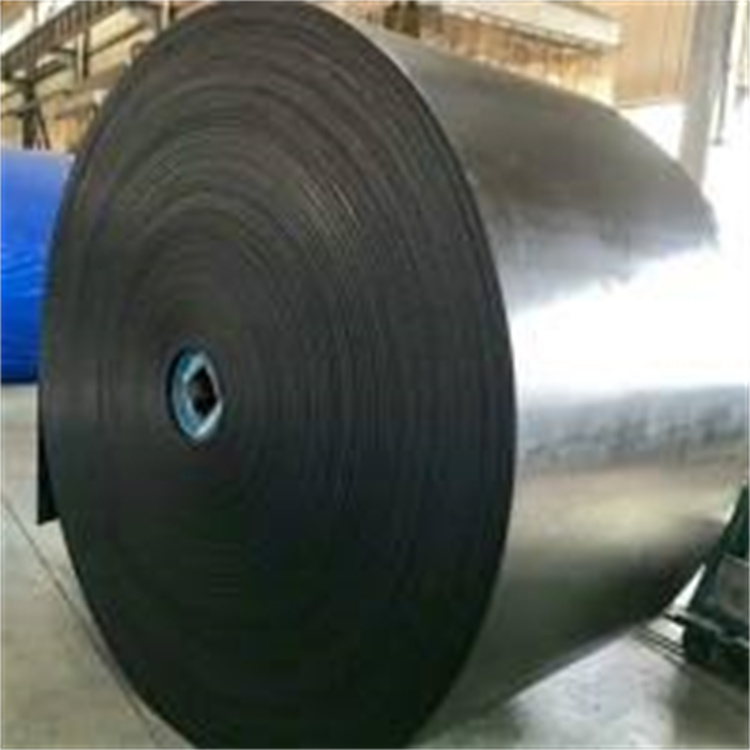

Filter Belt is a conveyor belt made of pure cotton canvas or interwoven impregnated cotton canvas, refined through processes such as rolling, forming, and vulcanization. The core material can be polyester cotton interwoven fabric TC-70 or cotton canvas CC-56, with a width range of 500mm-6000mm, a fabric layer of 1-12 layers, and a covering adhesive thickness of 1.5-10mm on the working surface and 0mm-6mm on the non working surface.

Material and Manufacturing Process

The main materials for Filter Belt include cotton canvas, natural rubber, nitrile rubber, carbon black, and some chemical raw materials. Its manufacturing process includes rolling, forming, and vulcanization processes. The core is woven from fibers such as cotton, nylon, polyester, or vinylon, which have good adhesion and durability

Performance characteristics

Ordinary conveyor belts have less deformation under high temperature conditions and are suitable for use in situations where the distance is short and the amount of conveyed material is small. Its surface is smooth and flat, which can meet different usage conditions. It can be made into various structural specifications such as edge wrapped, open edge, middle ladder, edge ladder, etc

Flat belts have the following characteristics:

1. High tensile strength, good pre tension retention performance, and good moisture resistance.

2‌. Low overload capacity, poor heat and oil resistance

3. The transmission installation area is large, the transmission speed is relatively small, but the transmission power range is large, the transmission speed is fast, and it can generally be used alone without the need for assembly, and there are no disadvantages such as uneven length

1. Superior transmission performance: Ordinary flat belts have good flexural flexibility and high pre tension retention performance, suitable for use in various working conditions. It has high tensile strength, can withstand large loads, and has a small overload capacity, making it suitable for use in situations where stable transmission is required

2. Flexible design: The transmission design of ordinary flat belts is very flexible, and belts of different lengths and widths can be customized to meet the needs of various transmission structures. Due to its graphic design, the manufacturing of the driving wheel and roller is simple and cost-effective

3. Efficient and energy-saving: The efficiency of ordinary flat belts is significantly higher than that of ordinary conveyor belts and transparent conveyor belts. Due to the small friction loss, the efficiency can reach over 98%. Higher efficiency in synchronous belt transmission and gear transmission

4. Long service life: Ordinary flat belts have high wear resistance and stable friction coefficient, which can ensure stable speed and long service life throughout the entire service life range

5‌. Low noise: Ordinary flat belts have lower operating noise and are suitable for use in situations that require a low-noise environment. By applying a bottom coating or structuring the elastic layer, noise can be further reduced

1. Building materials industry: Ordinary conveyor belts are widely used in the building materials industry, suitable for conveying various building materials such as sand, gravel, cement, etc

2. Coal industry: In the coal industry, ordinary conveyor belts are used to transport coal and other minerals

3. Power industry: In the power industry, ordinary conveyor belts are used to transport coal powder and other fuels

4. Metallurgical industry: In the metallurgical industry, ordinary conveyor belts are used to transport various metal ores and waste materials

5. Chemical industry: In the chemical industry, ordinary conveyor belts are used to transport various chemical raw materials and products
