Rubber conveyor belts are the backbone of material handling in industries worldwide. From mining and ports to manufacturing plants, these belts move bulk materials efficiently, reliably, and continuously. Understanding how they are designed, built, and maintained can help operators choose the right type and ensure maximum performance. In this article, we answer the most common questions about rubber conveyor belt manufacturing, covering everything from lifespan and recycling to belt types and quality control.
Rubber conveyor belts are essential tools for moving bulk materials in factories, mines, and ports. At their core, they combine a carcass—the internal framework—and rubber covers that protect, grip, and carry materials. Think of the carcass as the belt’s skeleton and the rubber as its skin.
EP Belts: Standard textile carcass, ideal for horizontal or slightly inclined transport.
EP Belts with Steel Reinforcement: Extra strength in the top cover, perfect for heavy loads or abrasive materials.
Steel Cord Belts: Extremely strong, suitable for long-distance or vertical transport.
| Type | Carcass | Best Use | Strength |
|---|---|---|---|
| EP | Polyester/Polyamide | Light to medium loads | Moderate |
| EP + Steel | Textile + Steel | Heavy or abrasive | High |
| Steel Cord | Steel wires | Long or vertical | Very High |
They come in shapes for different tasks:
Flat Belts: Most common, for general horizontal transport.
Tubular Belts: Folded into a tube for carrying fine or dusty materials.

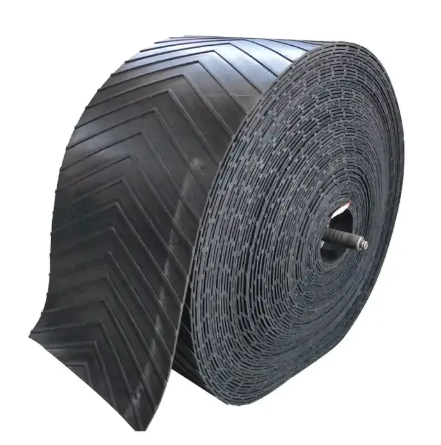

Cleated Belts: Raised ridges help move loose or inclined materials without slipping.
Rubber conveyor belts rely on a mix of engineered materials:
Polymers: Form the rubber base, flexible and durable.
Fabric Plies: Strengthen the carcass, prevent stretching.
Carbon Black: Enhances wear resistance and UV stability.
Processing Oils: Make the rubber workable and improve elasticity.
Steel Cords: Provide tensile strength for long-distance or heavy-duty belts.
We choose every material carefully, because even small changes affect performance. They influence durability, grip, and resistance.
Manufacturing a rubber conveyor belt isn’t just mixing rubber and pressing it. It’s a carefully choreographed sequence where each step affects durability, performance, and safety. From raw materials to finished rolls, every detail counts, and modern factories combine automation, real-time monitoring, and human oversight to deliver consistent quality.
The journey starts long before rubber enters a mixer. The raw materials define the belt’s future performance, so quality checks are essential. Polymers are examined for melt flow behavior to ensure consistent mixing, while fabric plies are measured for moisture content to prevent future delamination. Processing oils are analyzed for composition to maintain elasticity and uniform curing, and carbon black is tested for particle size and distribution, which directly impacts abrasion resistance.
Using substandard materials isn’t an option. A single faulty batch can compromise adhesion, tensile strength, or surface durability. Each material is carefully documented, tested, and traced, forming the foundation of a belt that will endure heavy loads and harsh environments.
Once materials pass inspection, they move to the internal mixer, where polymers, fillers, sulfur, and accelerators combine into a uniform compound. This isn’t a simple blending task; it requires precise control of temperature, torque, and time. The mixer continuously monitors Mooney viscosity to track the rubber’s flow, specific gravity to maintain batch consistency, and scorch time to prevent premature curing.
Modern mixers are fully automated and traceable, logging every parameter along with operator ID and time. This data ensures each batch can be reproduced and provides accountability if any issues arise later in production. The result is a homogenous rubber compound ready for lamination.

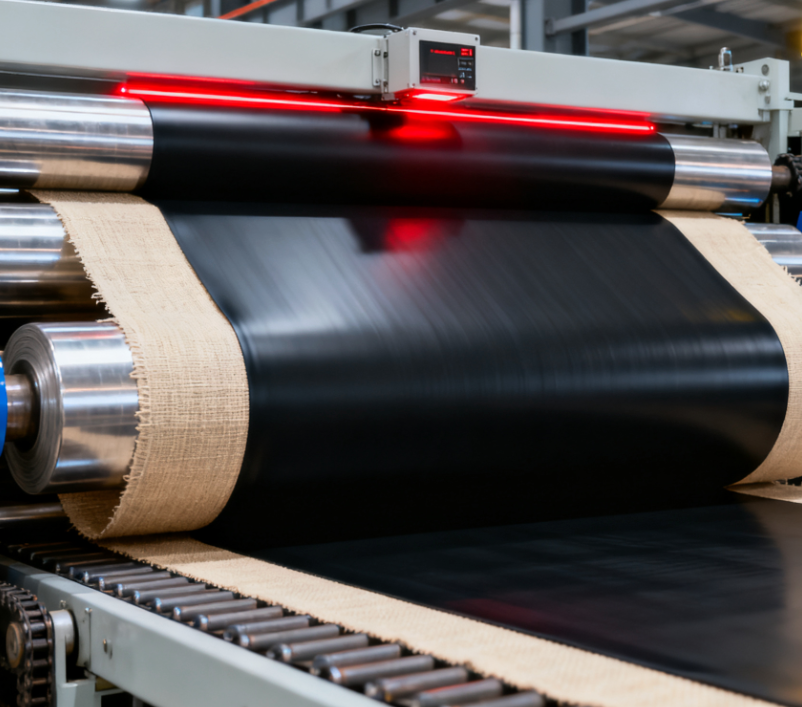

The next step is calendering, where rubber is precisely laminated onto the selected carcass—textile or steel. Four-roll calendering machines regulate thickness to within tenths of a millimeter and maintain strict width and edge alignment controls. Ply assembly follows, combining layers into a cohesive raw belt.
Attention to detail here is crucial. Even minor trapped air, skewed layers, or gaps can compromise belt integrity. Laser sensors, edge guides, and continuous visual checks help prevent errors. The raw belt emerges from this stage smooth, aligned, and ready for curing, a delicate process that transforms layered materials into a durable industrial component.
Vulcanization is where rubber becomes resilient. Applying controlled heat and pressure, the process cross-links polymer chains, creating a single, reinforced belt that withstands tension, impact, and extreme temperatures. Various presses—hydraulic, continuous, or dual-station—are used depending on belt type and size.
Every aspect of curing is logged, from temperature and press pressure to operator activity. This tracking ensures repeatable quality, allowing each belt to meet specifications precisely. Even minor deviations are noted and corrected in real time, demonstrating how modern manufacturing blends science and control to produce reliable belts.
Once the belt cools, it’s put through rigorous testing. Mechanical tests measure adhesion strength, ensuring the rubber and carcass remain bonded under stress. Tensile and elongation tests confirm flexibility and recovery, while hardness and rebound measurements gauge wear resistance. Visual inspections catch cracks, surface irregularities, or edge imperfections.
High-demand belts, like those for mining or heavy industry, may also undergo fatigue testing to simulate long-term operation. These tests identify potential weak points before belts leave the factory, preventing downtime and costly failures for end users.
After passing all tests, belts reach the final production stage: cutting, finishing, and packaging. Slitting machines divide wide rolls into multiple narrower belts, while guillotine cutters trim precise lengths for splices, finger joints, or mechanical fasteners.
Post-cut, belts are re-measured for width, length, and edge squareness. Manual checks ensure no hidden flaws remain. Packaging protects belts during storage and shipment—tensioned coils, PP woven bags, and sturdy wooden or steel pallets prevent deformation and moisture damage. Export shipments include detailed labeling, shipment documentation, and optional photos or videos to confirm condition.
| Step | Description | Key Considerations |
|---|---|---|
| Raw Material Selection and Testing | Quality checks on polymers, fabric plies, processing oils, and carbon black | Consistency, moisture content, particle size, and composition to ensure durability and performance |
| Mixing Rubber Compounds | Combining polymers, fillers, sulfur, and accelerators in an internal mixer | Precise control of temperature, torque, time, and monitoring of Mooney viscosity, specific gravity, and scorch time |
| Calendering and Ply Assembly | Laminating rubber onto carcass material (textile or steel) | Thickness regulation, width and edge alignment, preventing trapped air or gaps |
| Vulcanization / Curing Process | Cross-linking polymer chains using controlled heat and pressure | Logging temperature, pressure, and operator activity to ensure consistent quality |
| Post-Cure Testing and Quality Control | Mechanical tests, visual inspections, and fatigue testing | Adhesion strength, tensile and elongation tests, hardness, rebound, and surface integrity |
| Cutting, Finishing, and Packaging | Cutting to size, re-measuring, and packaging for storage and shipment | Accurate dimensions, edge squareness, protection against deformation and moisture damage |
These finishing steps may seem simple, but for belts traveling thousands of kilometers, they are critical. Proper cutting, packaging, and documentation ensure the belt arrives ready to perform in demanding industrial environments.
Rubber conveyor belt manufacturing depends on specialized equipment, each performing a precise function. The production line is not just a sequence of machines—it’s an integrated system where accuracy, automation, and human oversight converge.
The process begins in internal mixers, where raw polymers, fillers, accelerators, and oils are combined into a uniform rubber compound. Temperature, torque, and mixing time are closely monitored. They ensure consistent Mooney viscosity and specific gravity for each batch. Modern mixers are fully traceable, logging every parameter along with operator ID. This data is crucial for reproducibility and quality assurance.
Once mixed, the rubber moves to calendering machines. These four-roll presses laminate the rubber onto textile or steel carcasses with extreme precision. Thickness is controlled to within tenths of a millimeter. Edge alignment, width, and surface finish are continuously monitored. Laser-guided measurements detect even minor deviations, ensuring uniformity across hundreds of meters of belt.
Vulcanization transforms layered belts into resilient products capable of handling heavy loads and extreme temperatures. Dual-station, hydraulic, or continuous presses apply controlled heat and pressure to cross-link polymer chains. Each cycle records temperature curves, press force, and operator activity, creating a digital fingerprint for traceability.
Throughout the line, advanced systems support precision. Servo-controlled laminating lines adjust ply positioning dynamically, keeping alignment perfect. Laser sensors measure width, thickness, and edge squareness in real time, eliminating guesswork. These tools catch tiny errors before belts move to the next stage, reducing waste and improving overall quality.
The entire production line is integrated with a Manufacturing Execution System (MES). Every machine, every batch, and every operator action is recorded digitally. This integration allows real-time tracking, quality monitoring, and data-driven decision-making. MES ensures full traceability from raw material to finished belt, making the process transparent and reproducible.
Modern rubber conveyor belt production isn’t just about performance—it’s about reducing environmental impact while maintaining quality. Manufacturers are finding ways to make belts greener without compromising strength or durability.
Some trimmed edges, offcuts, and start-up scrap are carefully collected and tested. Only non-structural base layers use these reclaimed rubbers. They don’t affect the belt’s performance but significantly reduce raw material waste. It’s a smart way to recycle while keeping safety and durability high.
Processing oils can release volatile organic compounds. Switching to low-VOC oils lowers harmful emissions during mixing and curing. Similarly, halogen-free flame retardants make belts safer and reduce toxic byproducts. They’re small adjustments that add up to a cleaner factory and a healthier environment.
Vulcanization produces sulfur-based gases and other chemical fumes. Custom air purification systems capture these emissions at the source. Activated carbon filters and ventilation domes prevent pollutants from leaving the press area. They ensure workers breathe cleaner air and that the factory footprint is minimized.
Long-lasting belts reduce waste and carbon footprint. Fewer replacements mean fewer shipments, less packaging, and reduced material consumption. By engineering belts to withstand abrasion, heat, and heavy loads, manufacturers combine eco-conscious practices with practical longevity.
The lifespan of a conveyor belt depends on several factors. Material type, load frequency, environmental conditions, and maintenance routines all play a role. Heavy-duty steel cord belts often last longer under extreme loads, while EP belts perform well for general applications with moderate tension and wear. Regular inspections and timely repairs can extend belt life significantly.
Yes, belts can be reclaimed and reused, though mostly in non-structural layers. Offcuts, trimmed edges, and production scrap can be incorporated into base layers of new belts. This process reduces waste and raw material consumption. Some belts can also serve secondary purposes, such as temporary conveyor lines or protective matting.
The choice depends on conveyor system requirements. EP (textile carcass) belts work well for moderate lengths and loads. Steel cord belts handle long distances and heavy loads where elongation could cause problems. Material weight, tension, and system length are key factors in selecting the proper belt type.
Yes, certain belts are designed for vertical or inclined transport. Steel cord belts provide high longitudinal flexibility and support heavy loads. EP belts can be reinforced with steel or transverse plies to handle vertical angles, preventing slippage or sagging. Proper top covers and cleats also help maintain grip during inclined transport.
Quality is built into every stage. Raw materials undergo rigorous testing for polymers, fabric plies, oils, and carbon black. In-process monitoring tracks viscosity, specific gravity, and lamination alignment. Post-cure inspections check adhesion, tensile strength, hardness, and surface integrity. Finally, manual checks catch defects machines may miss, ensuring every belt meets specifications.
Choosing the right rubber conveyor belt is crucial for smooth operations and long-term efficiency. From proper material selection to rigorous quality checks, every step matters in manufacturing durable, high-performance belts. For custom solutions, high-quality products, and expert support, Qingdao Hwation Rubber Co., Ltd. offers a wide range of conveyor belts designed to meet the toughest industrial demands.
