Vacuum rubber filter conveyor belt


Product Introduction


Vacuum rubber filter conveyor belt, also known as vacuum belt, is a key component of vacuum belt washing machine and DU horizontal belt vacuum filter machine

The maximum width can reach 5 meters.

Vacuum rubber filter conveyor belt

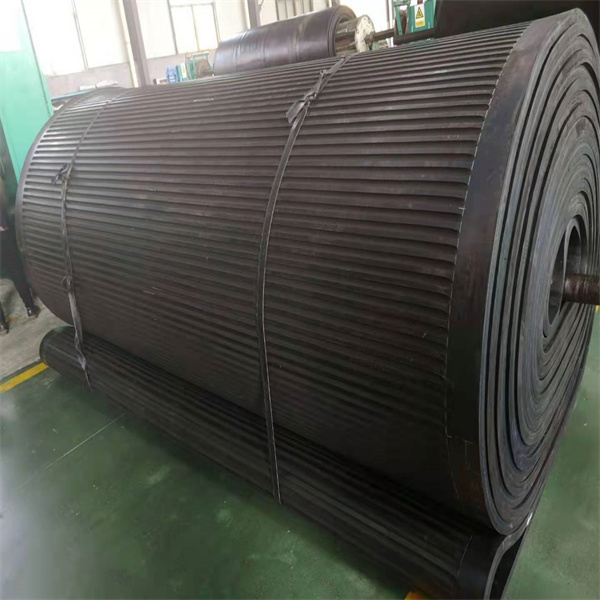

The surface of the belt is composed of rows of horizontal grooves, with one or more rows of drainage holes in the grooves. The drainage hole sections can be made of pure rubber structure; The skeleton layer of the belt is made of high-strength polyester canvas or polyester canvas; The upper and lower covers of the filter belt can be formulated differently according to working conditions to meet different requirements such as acid and alkali resistance, heat resistance, oil resistance, and cold resistance; The molding and vulcanization of the tape adopt a one-time integral composite process, ensuring the flatness of the tape body and the stability of its performance.


Product Category:

Acid and alkali resistant filter belt

Suitable for working environments that come into contact with acids and bases, such as phosphate fertilizers, alumina, catalysts (4A fluorite), and other industries. The covering rubber is made of rubber and plastic blend material and filled with acid and alkali resistant inert medium, which has superior acid and alkali resistance compared to chloroprene rubber; The skeleton material is made of high-strength polyester canvas, which is more acid and alkali resistant than cotton canvas; The drainage hole is made of pure rubber, which effectively blocks the corrosion of the skeleton layer by acidic and alkaline liquids, greatly improving the service life of the filter belt.

Heat resistant filter belt

Mainly used for filtering high-temperature materials, 800C<heat-resistant temperature<1050C. The covering rubber adopts EPDM rubber material with superior heat resistance and aging resistance; The skeleton layer is made of high-strength polyester canvas, and heat-resistant glass cloth can be laid between the covering adhesive and the skeleton layer; The drainage hole section adopts a pure rubber structure, effectively blocking the influence of high temperature and filtrate on the skeleton material; The service life of the filter belt has been significantly improved.

Oil resistant filter belt

Suitable for filtering environments of various oily materials. The covering rubber is made of nitrile rubber with high acrylonitrile content, and the skeleton layer is made of high-strength polyester canvas. It has the advantages of body deformation, low rate of change, high strength, and wide range of use.

Cold resistant filter belt

Suitable for working environments with temperatures ranging from -400C to+700C. The skeleton layer is made of polyester canvas, and the covering rubber is a combination of rubber and butadiene rubber, which has the characteristics of high elasticity, impact resistance, and cold resistance.


Product Application

1. Metallurgical industry: used for processes such as slurry processing and metal refining.

2. Energy field: applied in processes such as coal washing and gypsum dehydration in flue gas desulfurization.

3. Chemical industry: serving processes such as fertilizer production and petrochemical product processing.

4. Environmental engineering: used for environmental projects such as tailings treatment and sewage treatment.

5. Food and pharmaceuticals: applied in processes such as raw material purification and product separation.

6. Paper industry: used for pulp treatment, wastewater recovery and other processes.
