Chemical/ Acid/ Alkaline Resistant Resistant Conveyor Belt

Technical data
Core material:EP125,EP150,EP200,EP300,EP350 etc..
Belt width:500-3000mm
Fabric layer: The number of fabric layers can vary from 1 layer to 10 layers
Cover rubber: The thickness of the cover adhesive on the working surface is 1.5mm to 8.0mm, and the thickness of the cover adhesive on the non working surface is 1.5mm to 4.5mm
Belt thickness:8-35mm
Rubber standard:DIN X,DIN Y,DIN Z,DINW,RMAI RMAII etc..
Minimum order quantity: 100 meters
Acid and alkali resistance: After soaking in a 10% sodium hydroxide solution at room temperature for 72 hours, the change rate of tensile strength and elongation at break of the covering layer should be within ± 20%, the change rate of mass should be within ± 5%, and there should be no obvious swelling, cracking, delamination or other phenomena on the surface
Availability:
Quantity:

Product Description

Chemical/ Acid/ Alkaline Resistant Resistant Conveyor Belt


Material: Chemical/Acid/Alkali Resin Resin Conveyor Belt with canvas fabric as the core and covered with alkali resistant adhesive. Common skeleton materials include EP canvas (polyester canvas), nylon canvas (NN), and cotton canvas (CC). The covering rubber is made of natural rubber, nitrile rubber and other materials, which have good physical and chemical corrosion resistance properties

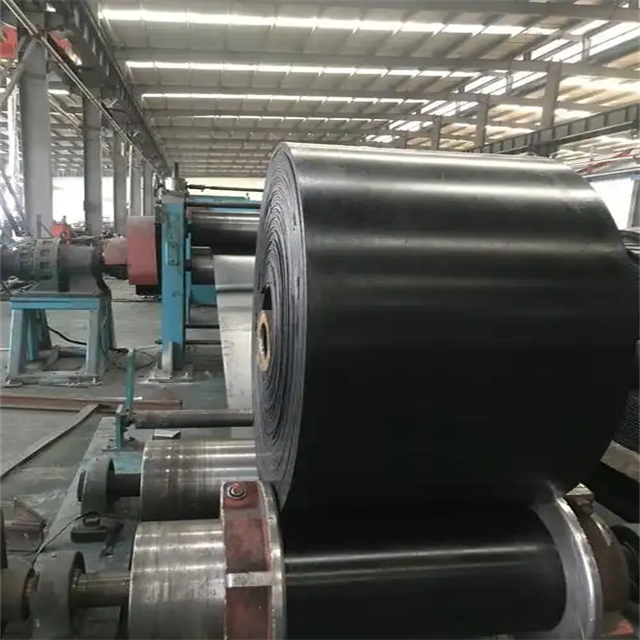

微信图片_20250522102839

Performance: Chemical/Acid/Alkaline Resin Resin Conveyor Belt has good physical and mechanical properties and chemical corrosion resistance, suitable for conveying alkaline block, granular, and powdery materials or finished items at room temperature. It has good groove forming performance, low elongation rate, thin and strong belt body, impact resistance, strong interlayer adhesion, and excellent flexibility

Chemical properties: The covering adhesive has undergone special treatment and is filled with acid and alkali resistant inert materials, making the conveyor belt perform well when in contact with alkaline substances. It has excellent alkali resistance and can work stably for a long time in high concentration alkaline solutions



Product advantages

1‌. Corrosion resistance: Chemical/Acid/Alkali Resin Conveyor Belt can work for a long time in acidic and alkaline environments without corrosion, suitable for transporting corrosive chemicals such as acids, alkalis, salts, etc

2. Wear resistance: It has good wear resistance and is suitable for conveying granular or block materials, and can withstand large loads

3. Tensile strength: With high tensile strength, it can withstand large loads, ensuring the stability and durability of the conveyor belt

4. Temperature resistance: Some acid and alkali resistant conveyor belts also have high or low temperature resistance, suitable for extreme temperature environments

5. Affordable: Due to the moderate prices of the main raw materials and the wide application range of chemical acid and alkali resistant conveyor belts, their economic applicability is even better

6. Physical and chemical properties: It has good physical and chemical corrosion resistance, suitable for chemical plants, fertilizer plants, paper mills and other mining enterprises, and can transport materials containing acidic or alkaline substances


Product Application

1. Chemical industry: used for transporting corrosive chemicals such as acids, alkalis, salts, etc

2. Metallurgical industry: used for transporting materials such as ore and slag

3. Food processing industry: used for transporting acidic or alkaline food raw materials

4. Sewage treatment industry: used for transporting sewage or sludge containing acidic and alkaline substances
